IP68
MEMS
1 Kg
On this page:

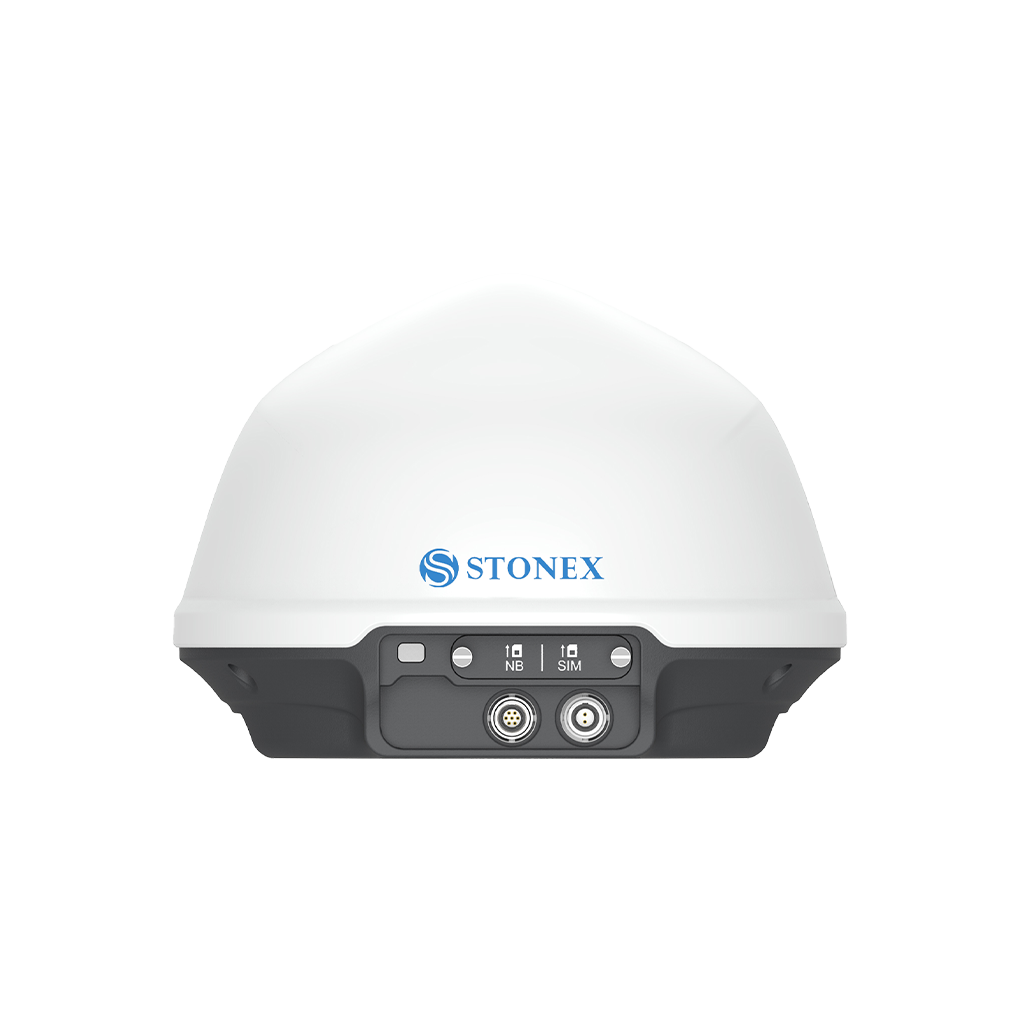

The SM300 is a high-performance GNSS receiver designed for precision monitoring and positioning applications.
It simultaneously tracks GPS, GLONASS, BEIDOU, GALILEO, QZSS, and SBAS constellations, with PPP support (HAS and B2b PPP), utilizing 800 channels and a sampling rate of up to 20 Hz.
The receiver features 32 GB of internal memory, enabling the storage of more than two years of raw data with circular overwrite capability. Storage can be expanded via TF card up to 512 GB for extended data logging capacity.
An integrated tri-axial MEMS accelerometer enhances the system’s functionality, supporting structural and geotechnical monitoring applications in addition to GNSS positioning.
The SM300 incorporates onboard GNSS raw data processing technology for static position computation in post-processing mode. At the same time, it is capable of real-time positioning by receiving RTK corrections from a single base station or a permanent reference station network.
GPS, GLONASS, BEIDOU, GALILEO, QZSS
ON BOARD POST PROCESSING
SUITABLE FOR ALL MONITORING APPLICATIONS

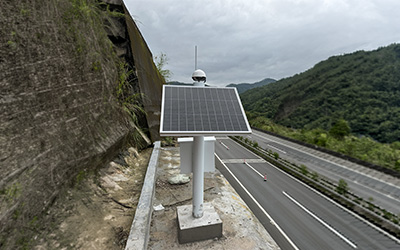

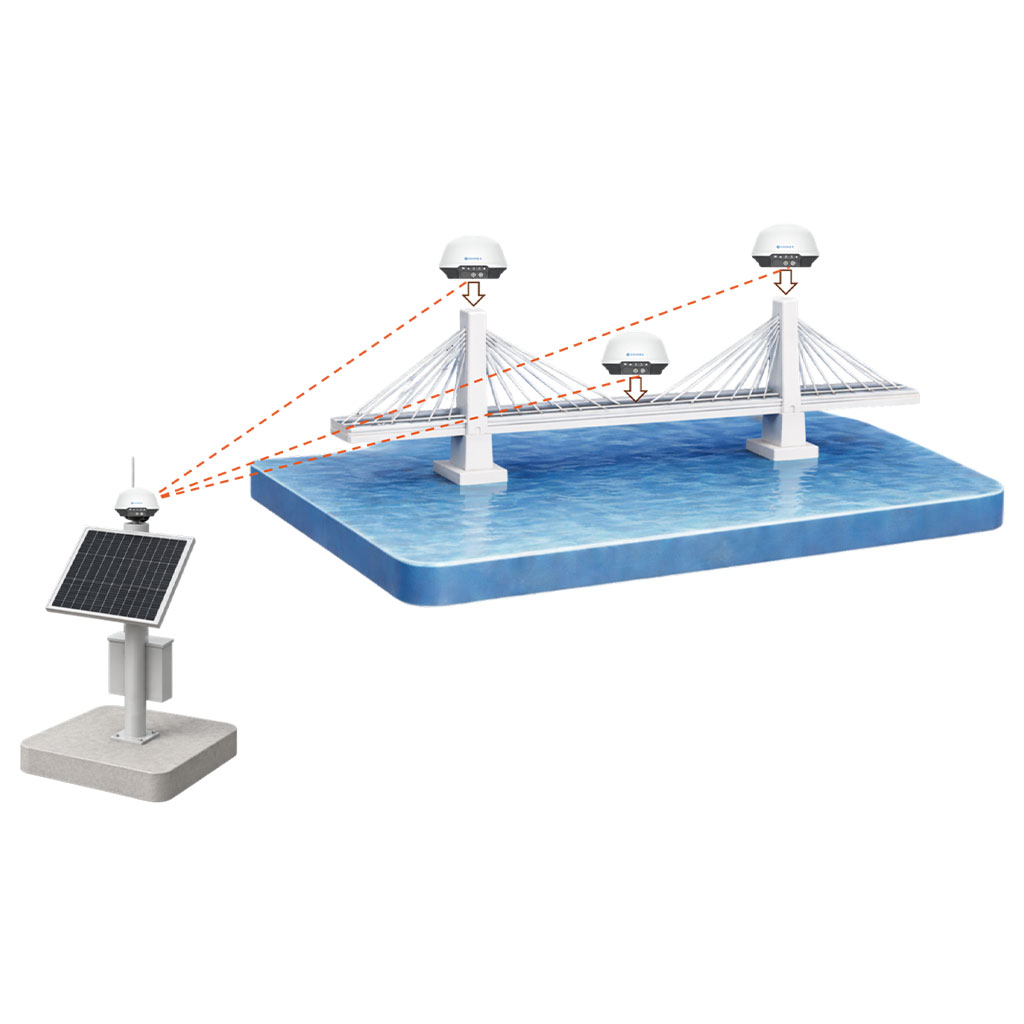

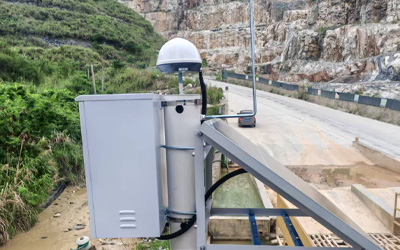

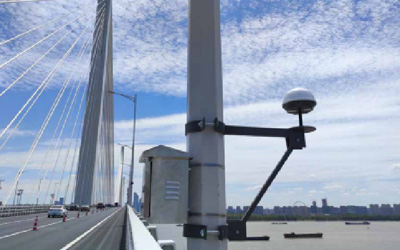

SM300 is a fully integrated GNSS system designed for high-precision continuous monitoring applications. It is suitable for use in areas such as geological hazard monitoring, structural monitoring of buildings, bridges, quarry and mining control.
In addition to other specialized applications within the civil and environmental engineering sectors such as slope and highway infrastructure monitoring.
ONBOARD POST-PROCESSING CALCULATION
The receiver can receive RTK corrections from a single base station or a permanent reference station network, providing site analysis with one-second updates.

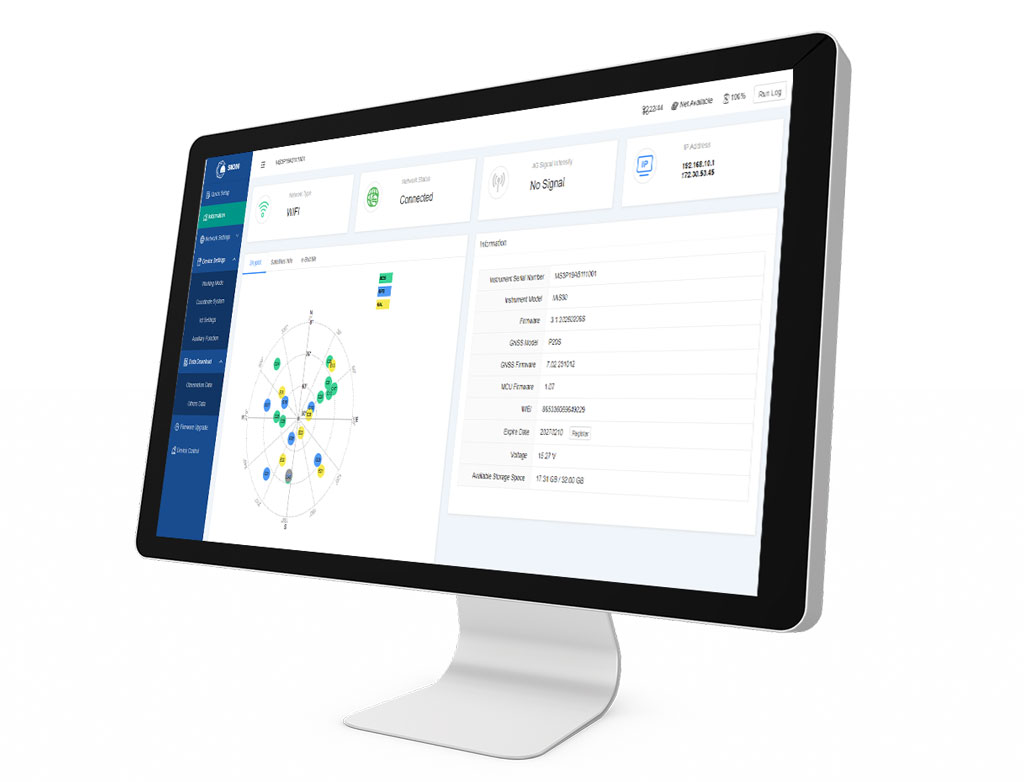

In addition, the system can perform onboard baseline post-processing using raw data from external stations. Results can be visualized graphically and published on a dedicated web page.
RADIO (optional)
An activation code can enable the integrated UHF on S850+, whose range can be up to 10km under optimal conditions.
MADE IN ITALY
If you are looking for a “Made in Italy” instrument with a 3 years warranty, you can purchase the italian version of our S850+ GNSS Receiver.
COMPACT AND RUGGED
Lightweight and compact instrument with IP67. This GNSS weighs only 1.1 Kg and has a dimension of 14 x14cm
FAQ
An Inertial Measurement Unit (IMU) is a self-contained system that measures linear and angular motion usually with a triad of gyroscopes and accelerometers. Stonex S980+ with IMU system makes every measurement reliable, in both survey and stakeout jobs, and makes the acquisition of points extremely faster, up to 40% of the field work time can be saved!
• No problem of electromagnetic disturbances
• Fast initialization
• Up to 60° inclination
• 2cm accuracy 30°
• 5cm accuracy 60°
• Fast and precise survey
