Android OS on board
Available in two versions, 0.5″ - 1″
Rotation speed of 180°/sec
On this page:
The R180 Monitoring is a high-precision, high-speed Android-based robotic total station. It is available with an angular accuracy of 0.5″, making it suitable for a wide range of applications and user requirement.
The advanced EDM technology integrated into the R180 Monitoring ensures fast, reliable, and highly stable distance measurements in all monitoring conditions. Designed for precision and efficiency, the system delivers outstanding performance for long-range measurements and demanding high-accuracy applications.
The instrument features a rotation speed of 180°/sec. Its quiet and smooth prism search and tracking capabilities are among its most notable and appreciated features.
Powered by the Android operating system, the R180 Monitoring allows users to access online services and interact with the touchscreen interface in a simple and intuitive way.
TDRIVE MOTOR, FAST AND SILENT
The R180 Monitoring features Tdrive motor technology, providing a high rotation speed of 180°/sec, making it one of the most performant instruments in its class.
Not only is it fast, but it is also remarkably quiet, with noise levels that are virtually imperceptible.
FAST360 & APC
The robotic total station is equipped with APC (Automatic Prism Centering) technology, enabling rapid and precise prism detection and centering at distance of up to 3000 m.
HIGH ACCURACY AND PROFESSIONAL RESULTS
R180 Monitoring is available with an angular accuracy of 0.5″. This feature ensures outstanding performance in applications requiring the highest level of measurement precision.
HIGH-PERFORMANCE EDM
R180 Monitoring is equipped with a high-performance EDM, enabling high-precision prism measurements with an accuracy of 0.8 mm + 1 ppm and a maximum range of up to 6 km. In reflectorless mode, the instrument measures distances up to 1000 m.
ANDROID ON BOARD
R180 Monitoring is equipped with an onboard Android operating system, enabling simple and intuitive management.
LONG DISTANCE REFLECTORLESS
R180 guarantees high accuracy long range measurements: up to 1000 m in reflectorless mode and up to 6000 m using a single prism, with millimeter accuracy.
RM100 MONITORING SYSTEM

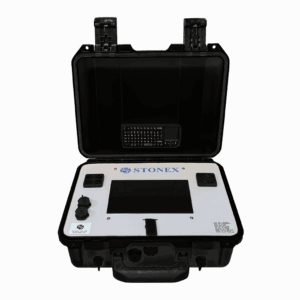

RM100 is a rugged data logger integrated with an industrial computer that communicates with the Total Station to measure desired targets, according to predefined schedule.
It covers all aspects of the surveying measurement procedure and uploads the measurements to a database or FTP server.

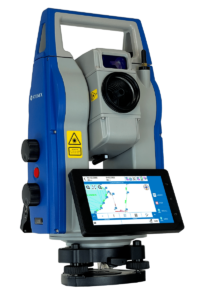

R180 Robotic Total Station for surveying applications
The R180 is a highly accurate and fast Android robotic station. Equipped with the Android operating system, the R180 has Cube-a as onboard software. This enables users to navigate online and interact with the touch screen in an easy and familiar way.
FAQ
R180 is available in three versions:
– 0.5” accuracy – 1000 m. as maximum reflectorless range
– 1” accuracy – 1000 m. as maximum reflectorless range
– 2” accuracy – 800 m. as maximum reflectorless range
Yes, thanks to Android operative system the user can configure the Total Station interface respects his needs. It’s possible to change language, change font dimensions, change the screen illumination, connect the instrument to the Wi-Fi, set a password…
R180 can be used in three different configurations:
– Onboard configuration -> to work directly on the station with Cube-a on-board version.
– Remote configuration -> to manage the survey and the station from cube-a installed on a tablet.
– One Pole solution -> for mixed survey, using Cube-a to manage GNSS and TS at the same time.
Yes, after enabling the lock mode the user can lock the prism simply tapping on it from the camera view.
Yes, in Cube-a the user can configure the behavior of the TS after prism lost defining a series of operations to re-lock the prism automatically. The sequence of these actions is completely customizable respects user needs and survey conditions.
The user can use physical methods (cables, USB Key) or wireless method (BT, Wi-Fi, email, cloud) to transfer data from the device to the PC.
