SM100
Versatile GNSS Monitoring Solution
Different configurations
GNSS Receiver
GNSS Antenna
On this page:
The integration of the GNSS SC650 CORS receiver with a GNSS antenna results in the SM100 system configuration, delivering a complete and versatile GNSS monitoring solution.

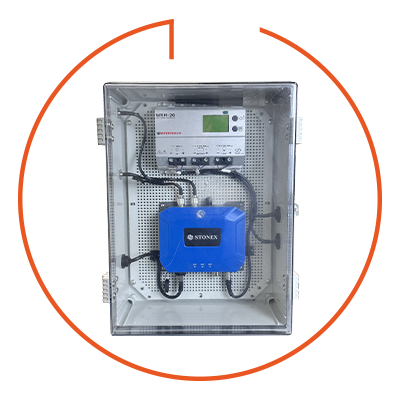

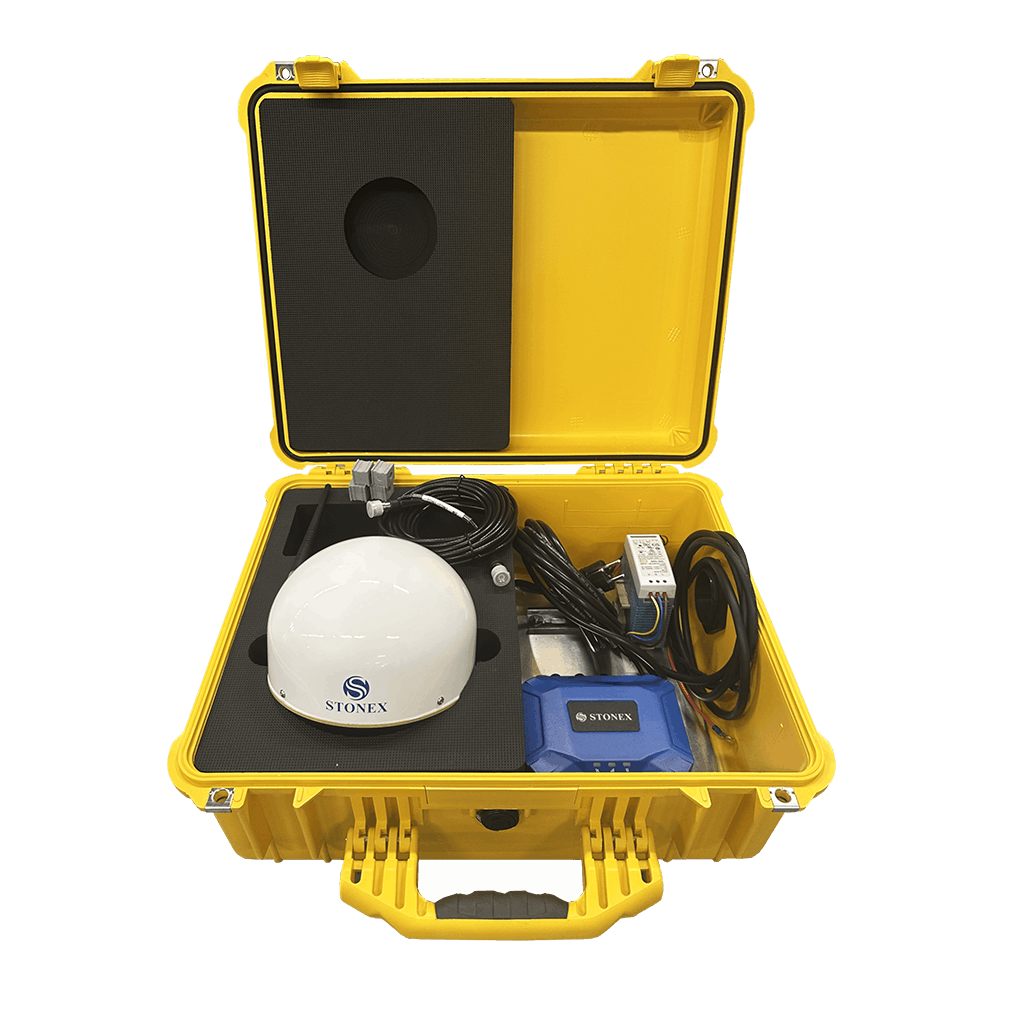

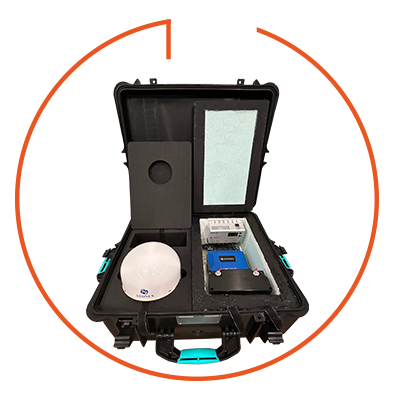

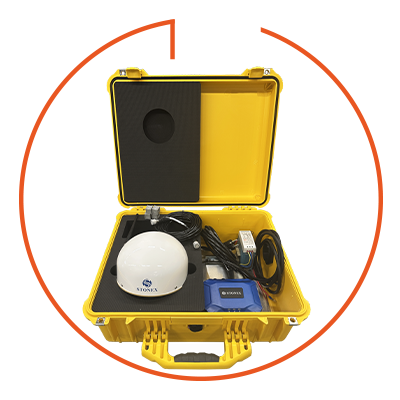

The GNSS system consists of a receiver housed inside a rack or a rugged case, fully protected against weather conditions, and a high-precision antenna mounted externally on a pole or a small pillar.
Its modular design and wide range of configurations make it a versatile solution for any monitoring application, ensuring optimal performance in all conditions.

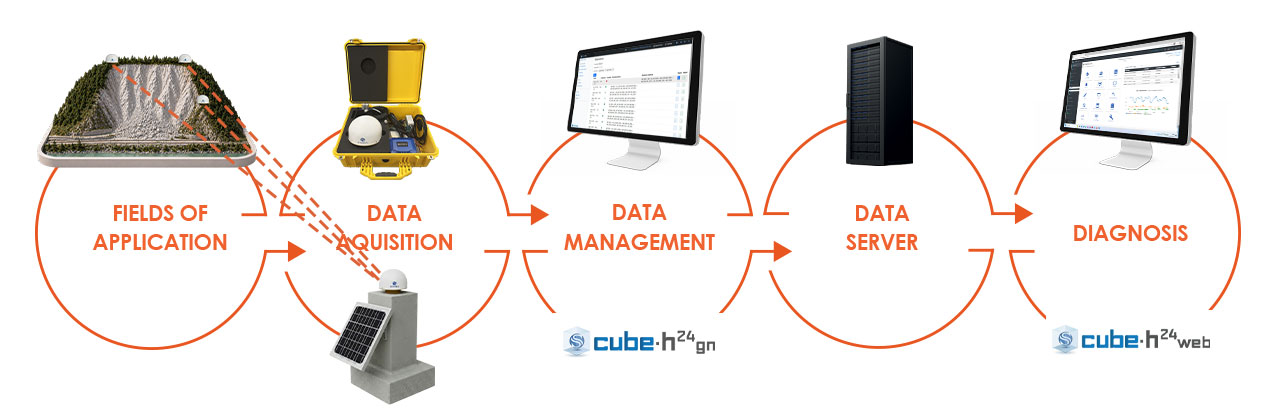

A COMPREHENSIVE PLATFORM FOR DATA PROCESSING
Cube-h 24 GN has been designed to manage GNSS CORS receivers data in order to

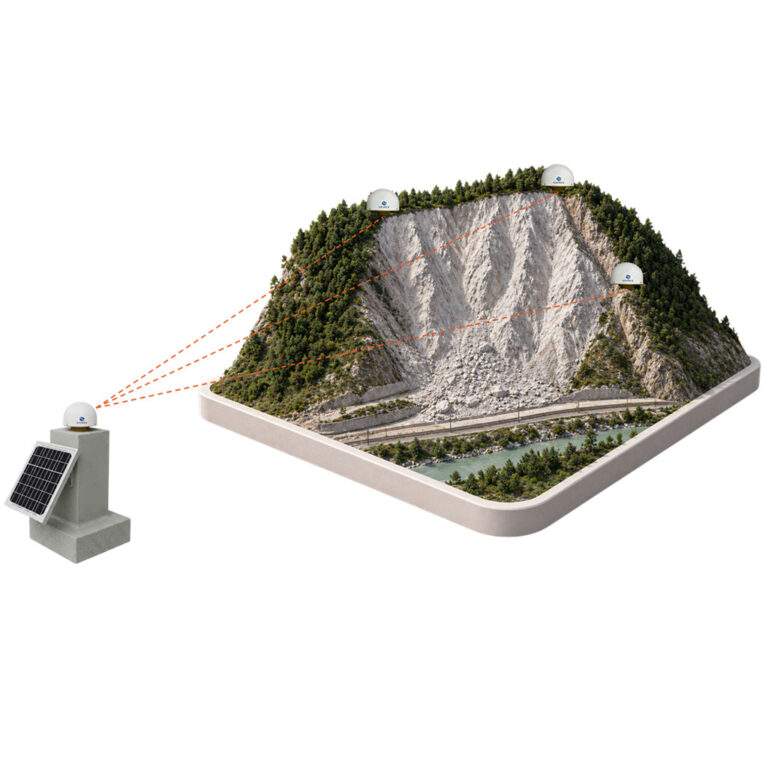

monitor point displacements, in natural environments or man-made structures.
Monitoring points are implemented using dedicated solutions to ensure the sensor stability and achieve maximum accuracy with minimal noise.
The software automates post-processing operations, reading RTK data and saving to database.
Multiple Configuration Options
SCHEDULED FREQUENCY OF MEASUREMENTS
REMOTE CONTROL
REPORTING AND ALERTS
FAQ
An Inertial Measurement Unit (IMU) is a self-contained system that measures linear and angular motion usually with a triad of gyroscopes and accelerometers. Stonex S980+ with IMU system makes every measurement reliable, in both survey and stakeout jobs, and makes the acquisition of points extremely faster, up to 40% of the field work time can be saved!
• No problem of electromagnetic disturbances
• Fast initialization
• Up to 60° inclination
• 2cm accuracy 30°
• 5cm accuracy 60°
• Fast and precise survey
